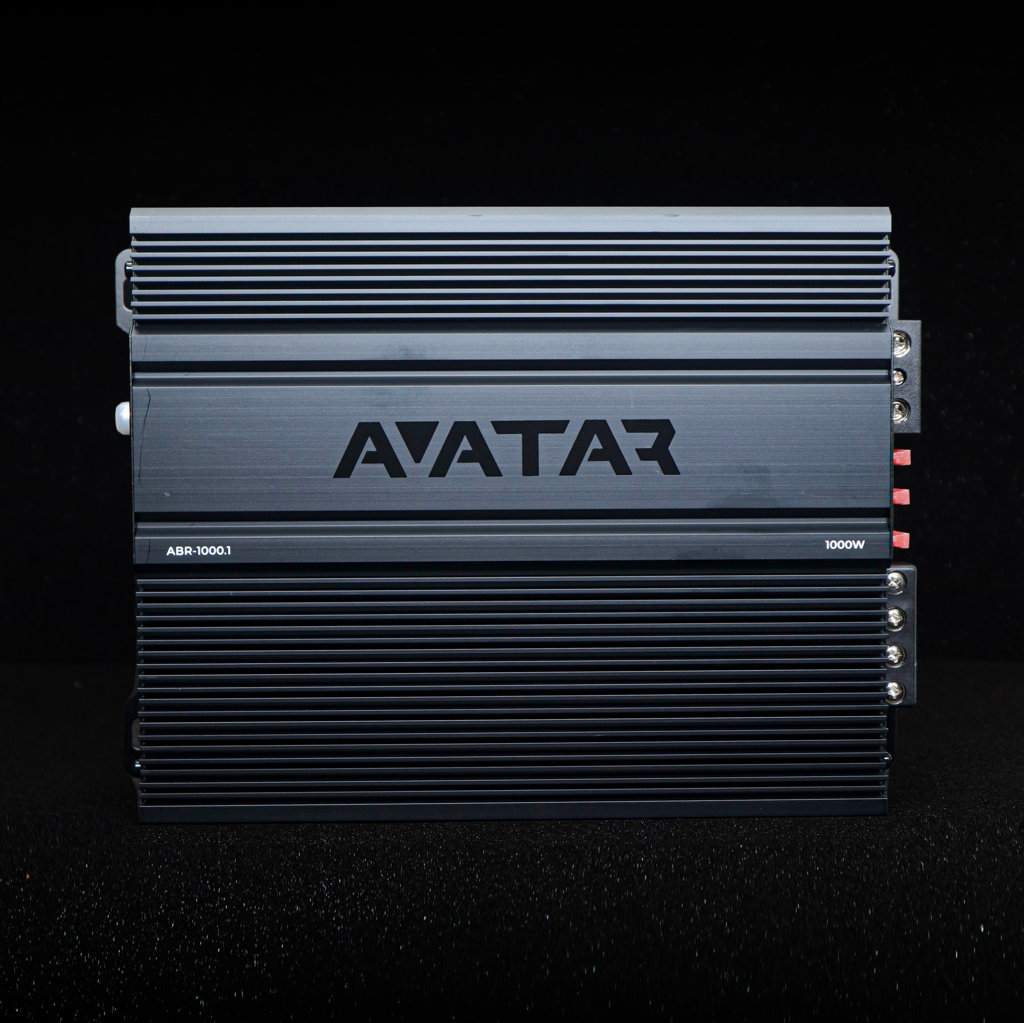

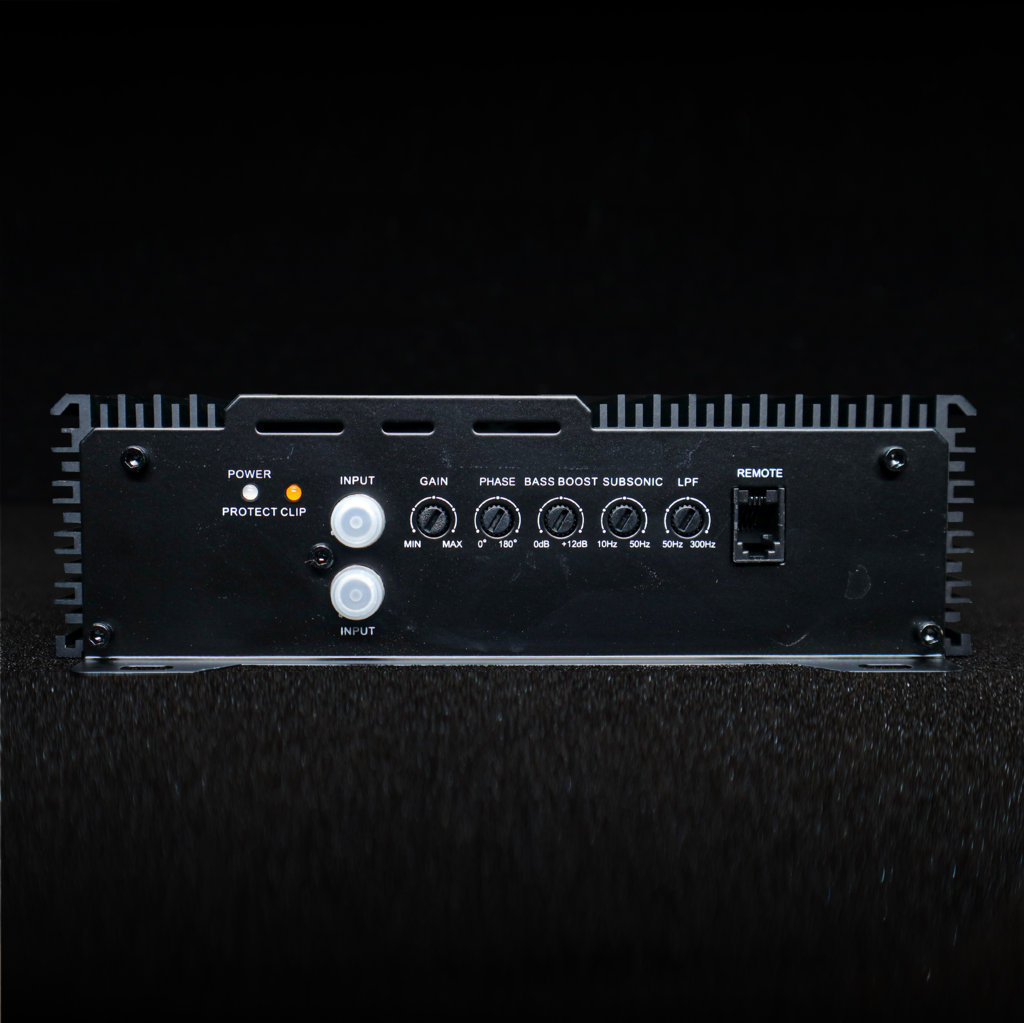

The ABR-1000.1 is a 1-channel amplifier (class D) with a power of 1000w RMS.
The practical design, power and related filters make this model an excellent decision for powerful sound and high quality of the audio system.
The cast aluminum body has very good shock resistance and the amplifier also operates in optimal conditions even at high temperatures.
Extremely loud with unprecedented sound quality!
A wide frequency response range, natural sound and extreme loudness - it was these criteria that guided Alphard Group engineers in the development of these speakers.
| Model | ABR-1000.1 |
| Class | D |
| Number of channels | 1 |
| Frequency range | 10-300 Hz |
| RMS Power @ 1 Ohm (14.4 V) | 1000 W |
| RMS Power @ 2 Ohm (14.4 V) | 700 W |
| RMS Power @ 4 Ohm (14.4 V) | 450 W |
| Minimum load resistance per channel | None Ohm |
| Input sensitivity, low level | 0.2 – 6 V |
| Low Pass Filter | 50-300 Hz |
| Crossover | 12 dB/Oct |
| Infra-low frequency filter | 10-50 Hz |
| Damping coefficient | ≥ 180 |
| Working voltage | 9 – 15 V |
| Signal/Noise | ≥ 90 dB |
| Dimensions (LxWxH) | 182.0 x 252.0 x 53.0 mm |
| Weight with packaging | 2.450 kg |
