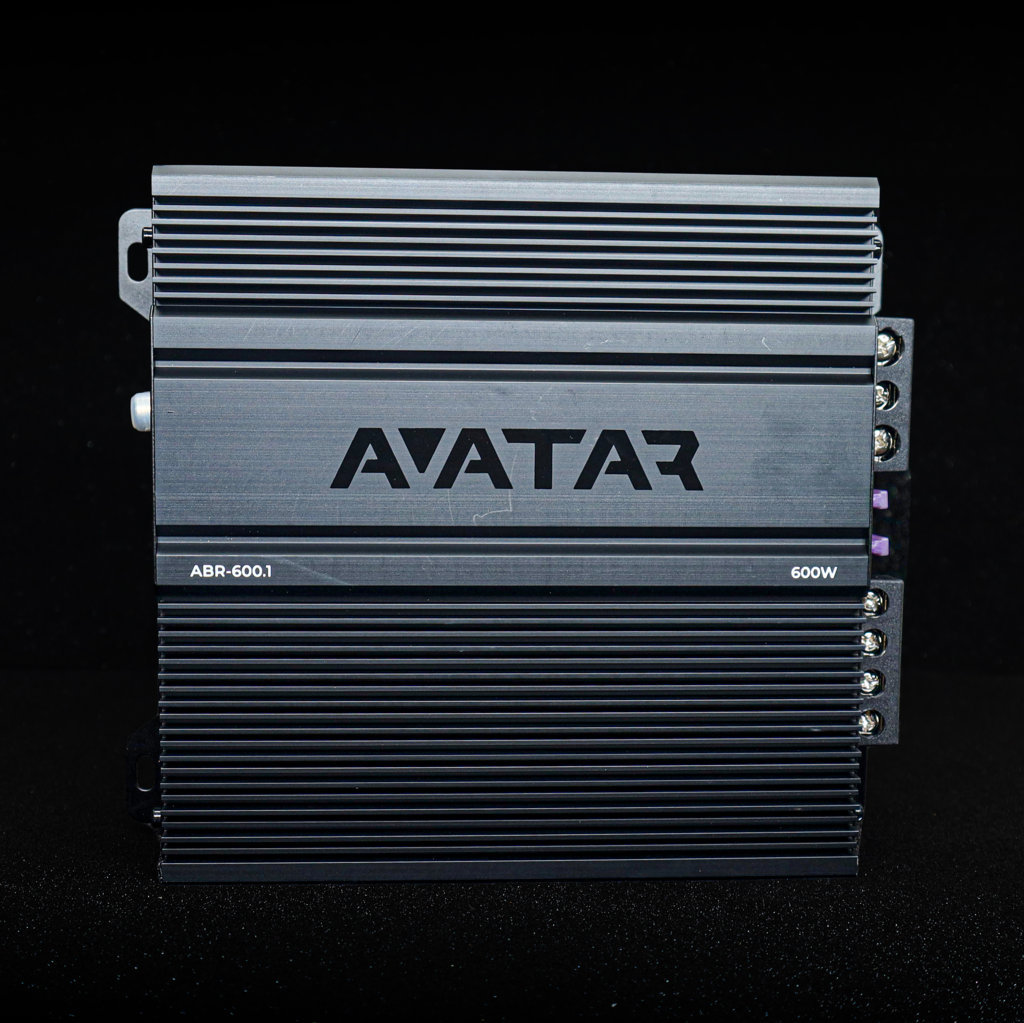

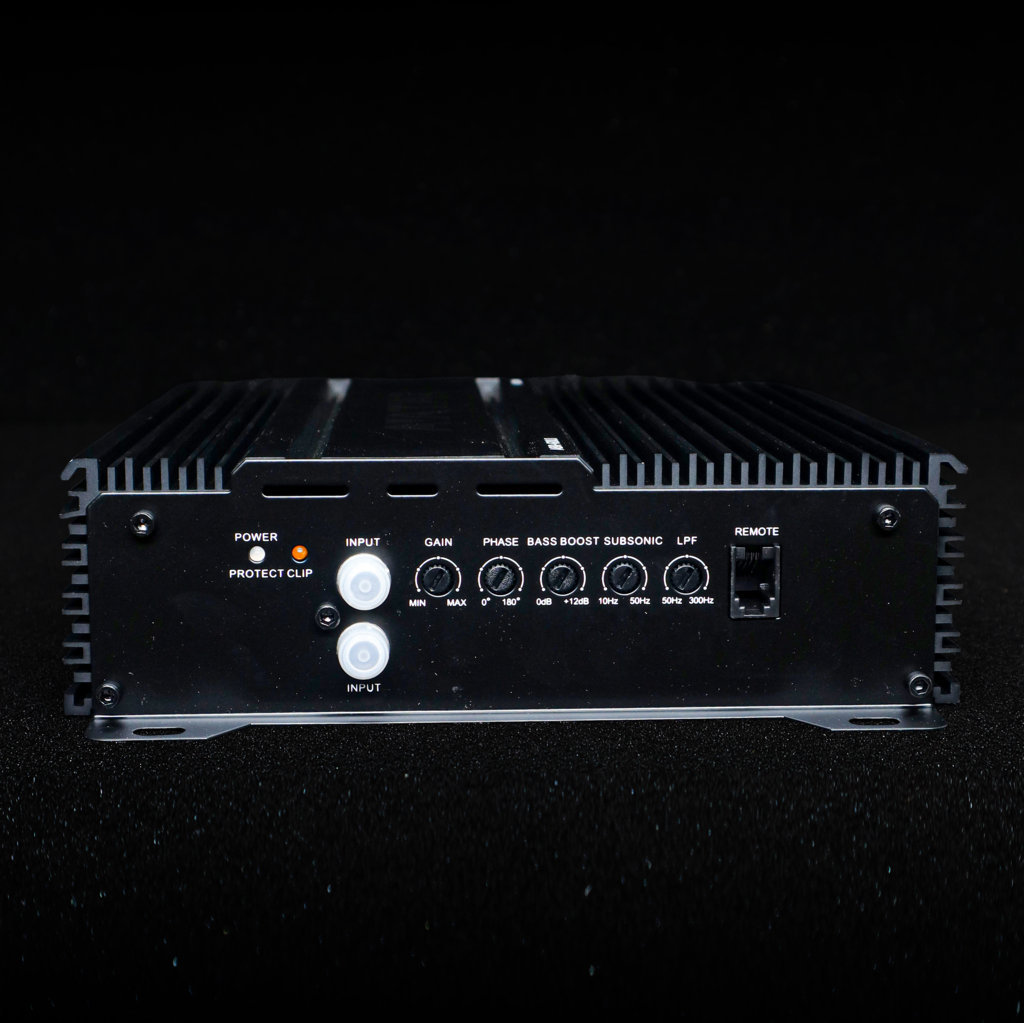

The ABR-600.1 model is an improved version of budget amplifiers. The change in mounting technology and the use of more efficient SMD components have increased the efficiency of this device. On a double-sided printed circuit board, it was possible to separate the power and signal tracks as much as possible, so the new Avatar monoblock for the subwoofer has become even more compact and of higher quality.
Extremely loud with unprecedented sound quality!
A wide frequency response range, natural sound and extreme loudness - it was these criteria that guided Alphard Group engineers in the development of these speakers.
| Model | ABR-600.1 |
| Class | D |
| Number of channels | 1 |
| Frequency range | 10-300 Hz |
| RMS Power @ 1 Ohm (14.4 V) | 600 W |
| RMS Power @ 2 Ohm (14.4 V) | 460 W |
| RMS Power @ 4 Ohm (14.4 V) | 300 W |
| Minimum load resistance per channel | 1 Ohm |
| Input sensitivity, low level | 0.2 – 6 V |
| Low Pass Filter | 50-300 Hz |
| Crossover | 12 dB/Oct |
| Infra-low frequency filter | 10-50 Hz |
| Damping coefficient | ≥ 180 |
| Working voltage | 9 – 15 V |
| Signal/Noise | ≥ 90 dB |
| Dimensions (LxWxH) | 182.0 x 212.0 x 53.0 mm |
| Weight with packaging | 1.987 kg |
